Foil Drive Universal Mini Pod

Regular price
$249.00
Sale price
$249.00
Regular price

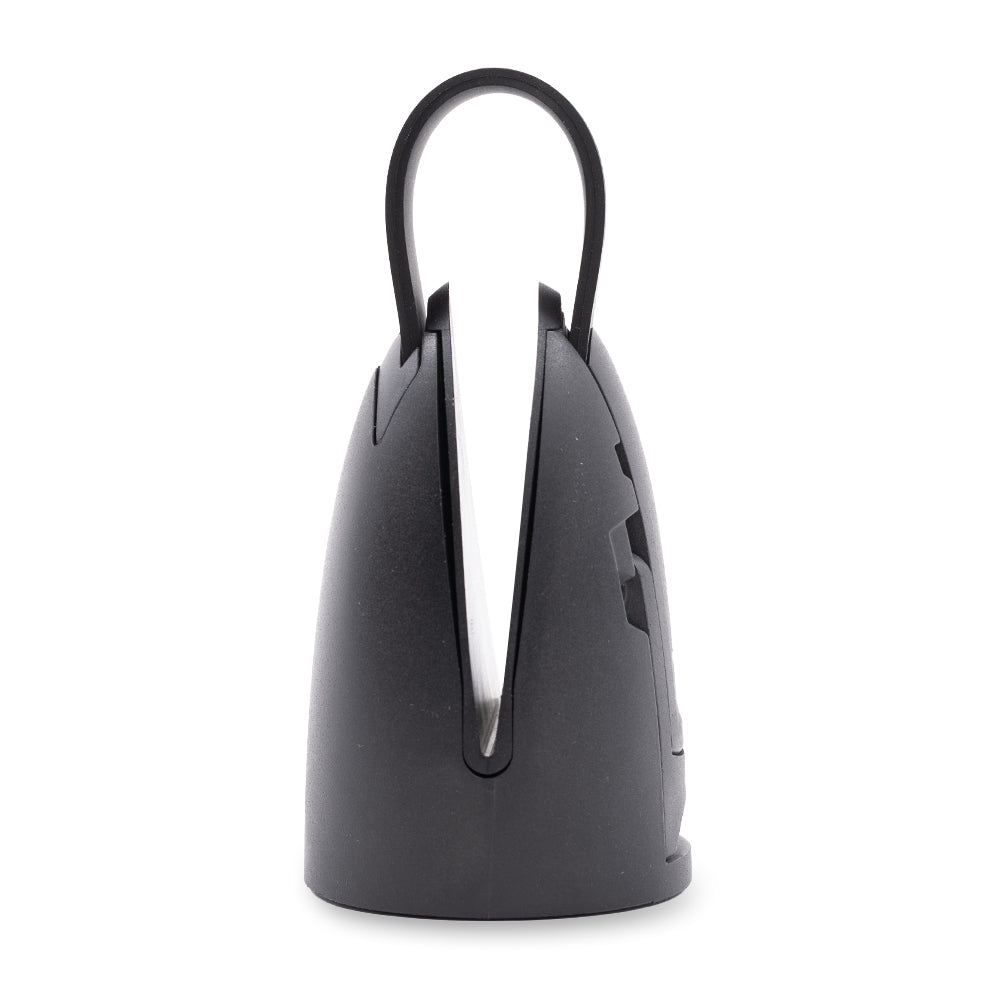

Foil Drive Universal Mini Pod

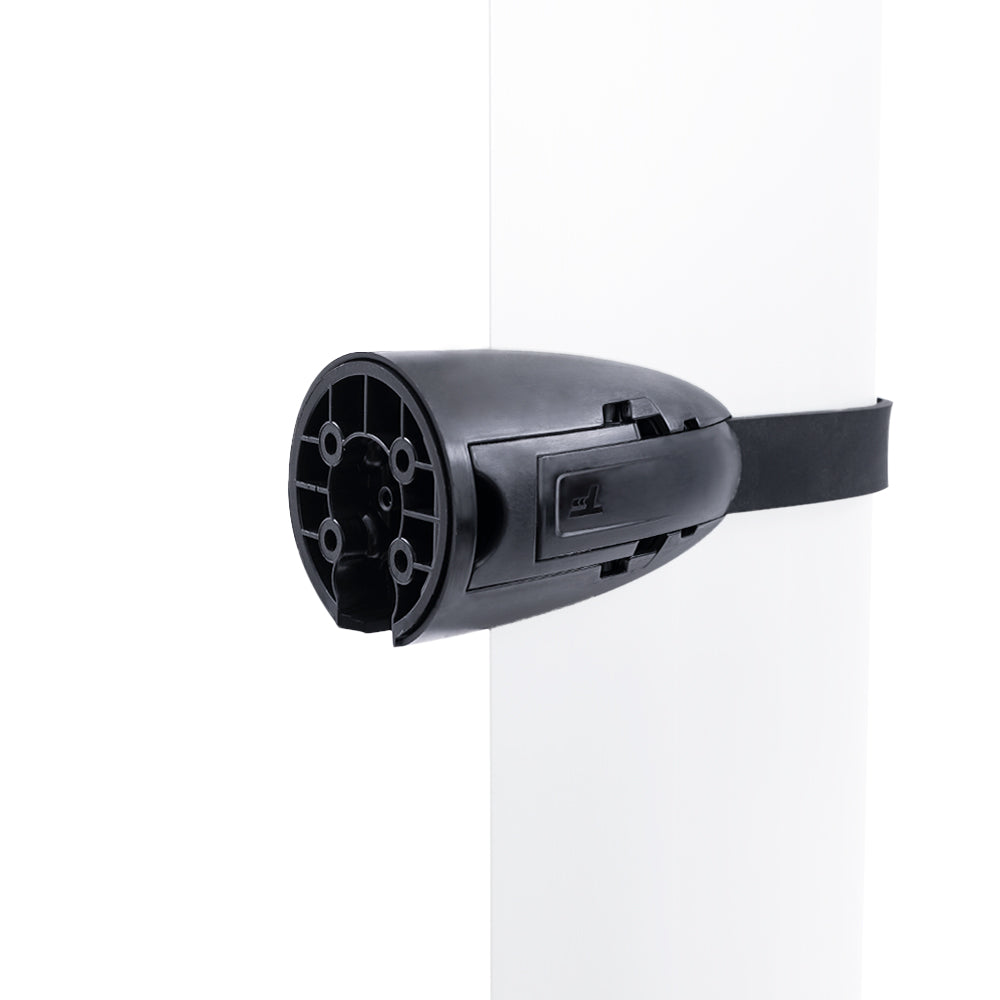

Foil Drive Universal Mini Pod - side
Foil Drive Universal Mini Pod - installed

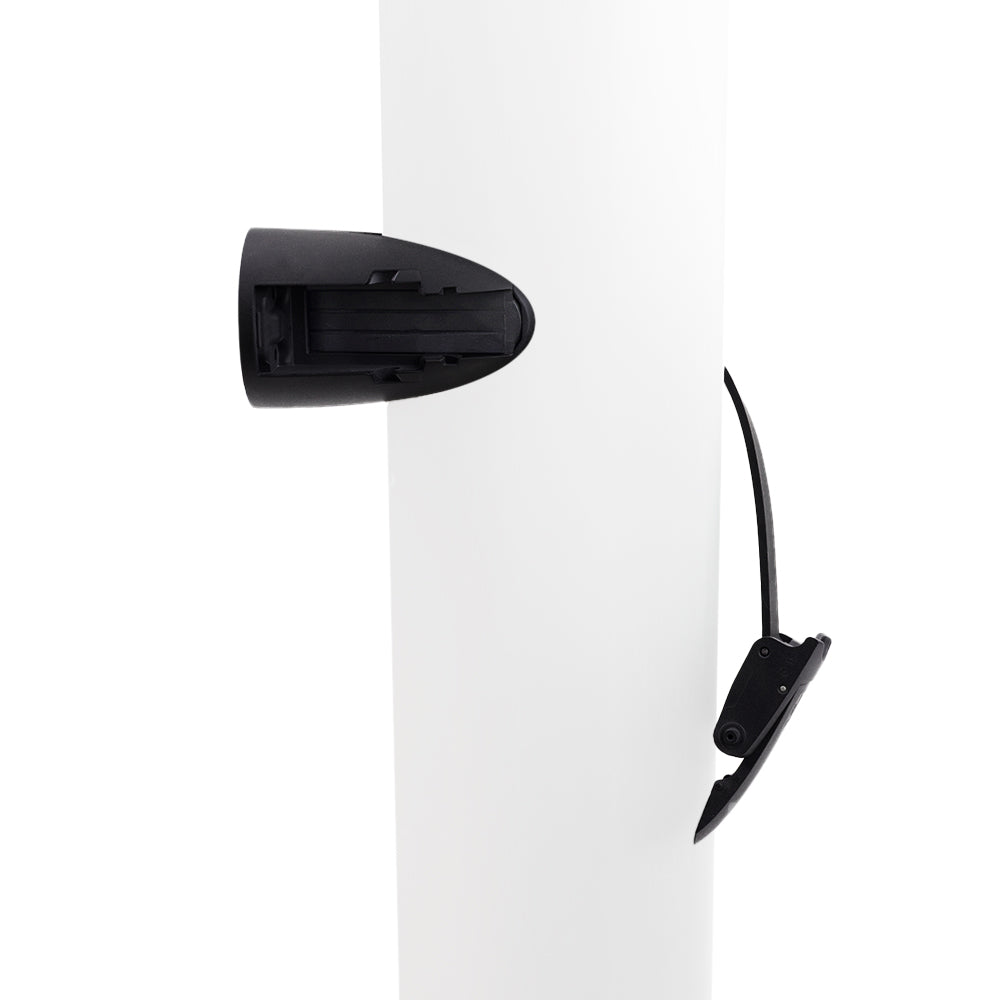

Foil Drive Universal Mini Pod - detail

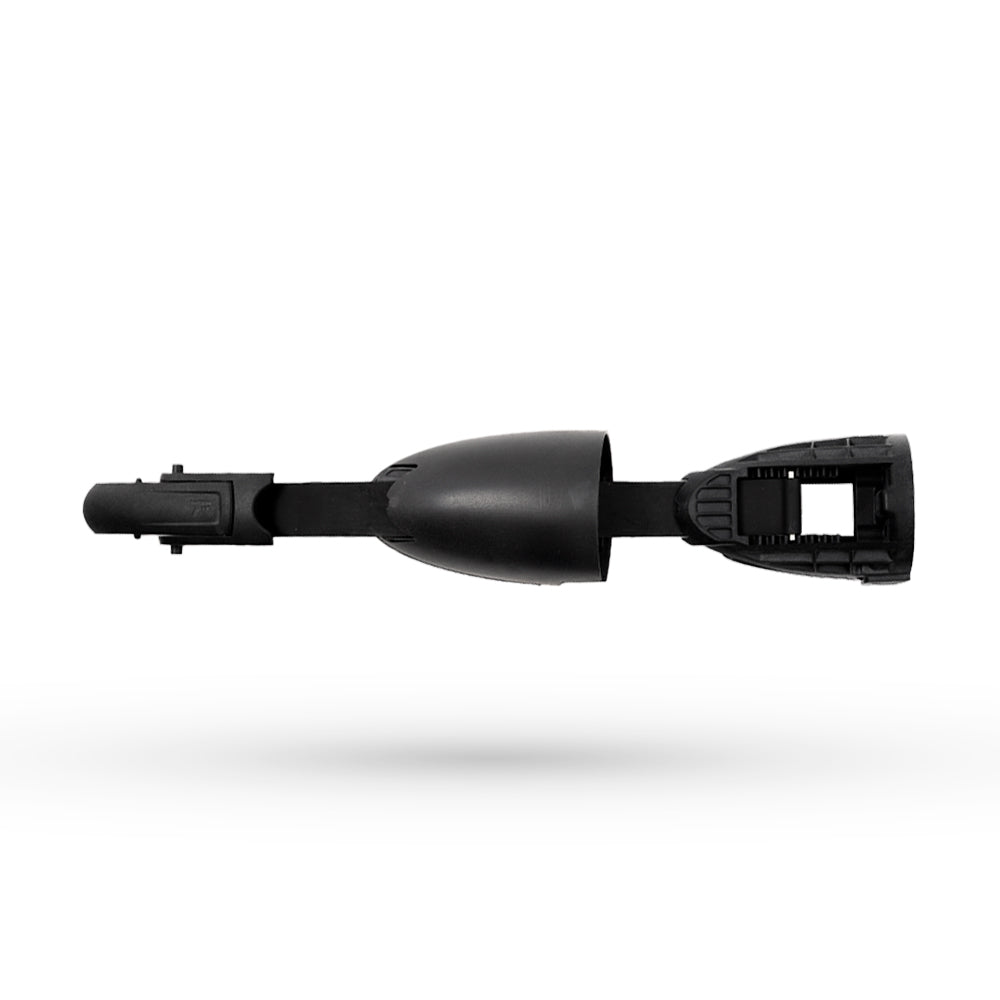

Foil Drive Universal Mini Pod - straps S/M/L
Foil Drive Universal Mini Pod
Foil Drive Universal Mini Pod - side
Foil Drive Universal Mini Pod - installed
Foil Drive Universal Mini Pod - detail
Foil Drive Universal Mini Pod - straps S/M/L

Product details

Description

The Foil Drive Universal Mini Pod is a toolless, instant-latching motor pod that cuts drag versus the older clamshell Universal Motor Pod. A smaller wetted area, a strap-and-latch fit, and a removable two-piece shell make mast swaps fast and screw-free after the one-time motor mount.

An Inner Pod bolts to the V2 motor. A removable Outer Pod deforms to the mast. The two slide on and lock with an EPDM, aramid-fibre-reinforced rubber strap. Three strap sizes ship with every Mini Pod. Most masts use Medium. The Inner Pod has a seven-position ladder so strap tension can be tuned to the mast.

V2 motors only. The Mini Pod needs a V2 motor with a removable motor cable. It is not compatible with V1 motors, and it is not a replacement pod for integrated masts that already have a fixed pod. This is not the older Universal Motor Pod (SKU FD095) — that clamshell still exists as a separate spare.

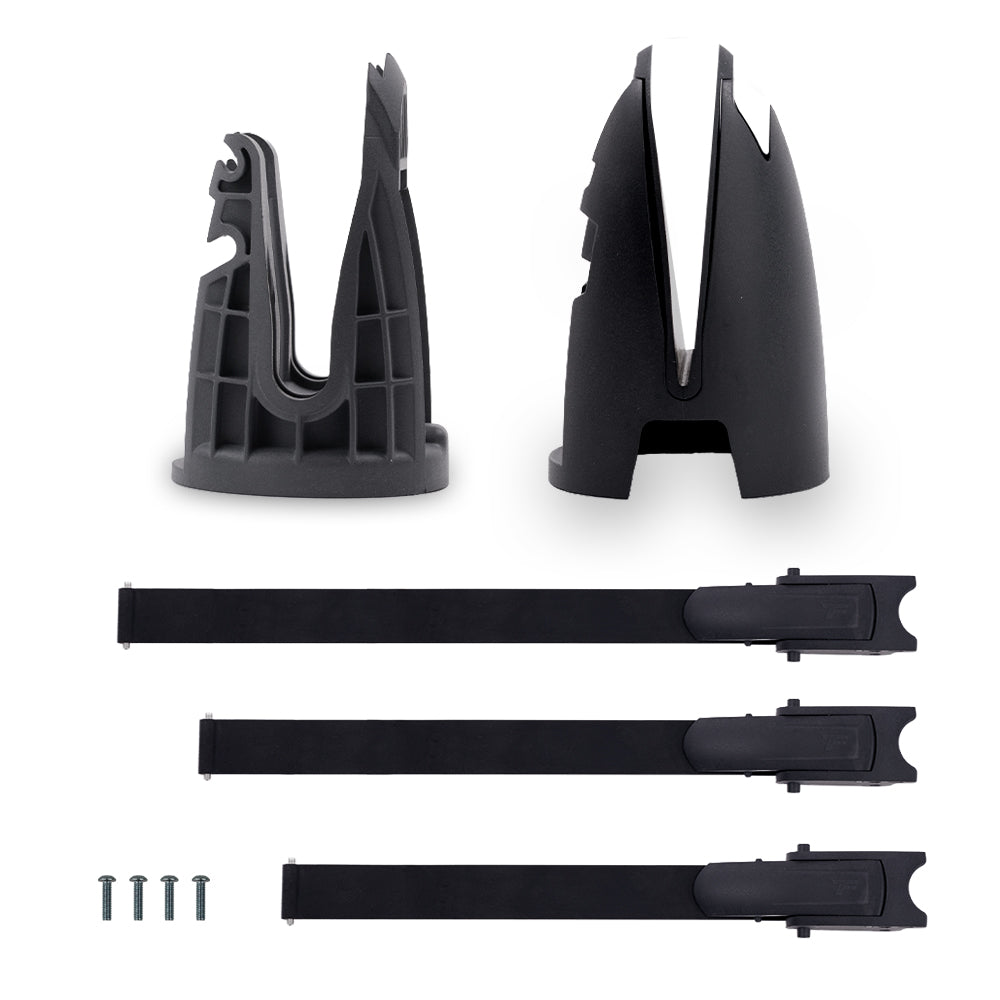

Includes: 1 Outer Pod, 1 Inner Pod, 3 straps (S / M / L), 4 M4 x 16 mm bolts, 1 mast cable guide. Electrical tape for the motor cable is not included.

Specs

SKU FD283
Install Toolless strap and latch after one-time Inner Pod mount (M4 x 16 mm)
Small strap 95-110 mm mast chord
Medium strap 112-128 mm (most masts)
Large strap 130-145 mm
Materials Injection-moulded ABS pods; EPDM / aramid straps
Compatible motors Foil Drive V2 with removable cable
Not compatible V1 motors; integrated masts with a fixed pod
