Foil Drive Assist MAX+

Built on the 43V architecture, the Foil Drive Assist MAX+ offers Foil Drive’s most durable one-piece battery design, all while retaining the compact, lightweight and balanced package that made the original Assist MAX so versatile.

From tiny bumps to the biggest waves of your life, MAX+ gives you the freedom to keep flying regardless of the conditions. Surfing, light wind wing, downwind, wake, flatwater or eFoiling, it adds more power, runtime and range to practically any existing foil setup, making every session easier to access, more productive and more fun.

The Assist MAX+ is the Gen 2.5 “all-rounder” and directly replaces the Assist MAX. It steps into the generation Fusion has already proven on the water, with around 20% more power and thrust than the MAX, a tilt sensor, improved Bluetooth, and more usable runtime from the new FM+ battery range.

Best for

• Longer surf sessions with a higher wave count, in more conditions
• Motoring upwind to unlock downwind runs without a shuttle
• Easier and faster flatwater take-offs
• Practising pumping without wasting energy on repeated tow or surf starts
• Chasing and riding wake swells from passing boats
• Fast self-recovery between falls for more ride time
• Extra thrust to unlock smaller boards and foils
• All rider types and abilities under 100 kg on small to mid-length boards (Foil Drive suggests the Fusion for riders 90 kg+ wanting maximum power and runtime)

Choose your setup

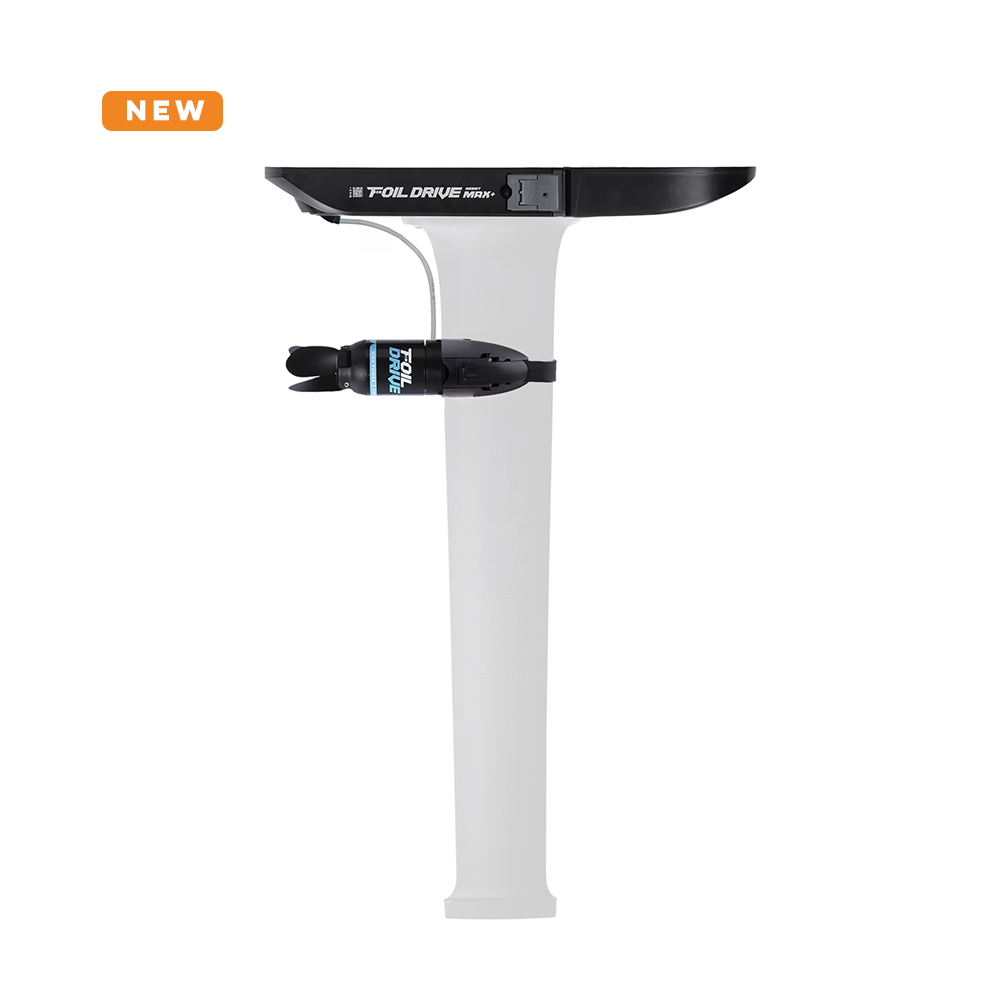

Battery: FM+ 650 Battery (648Wh), or No Battery if you already own an FM+ battery.

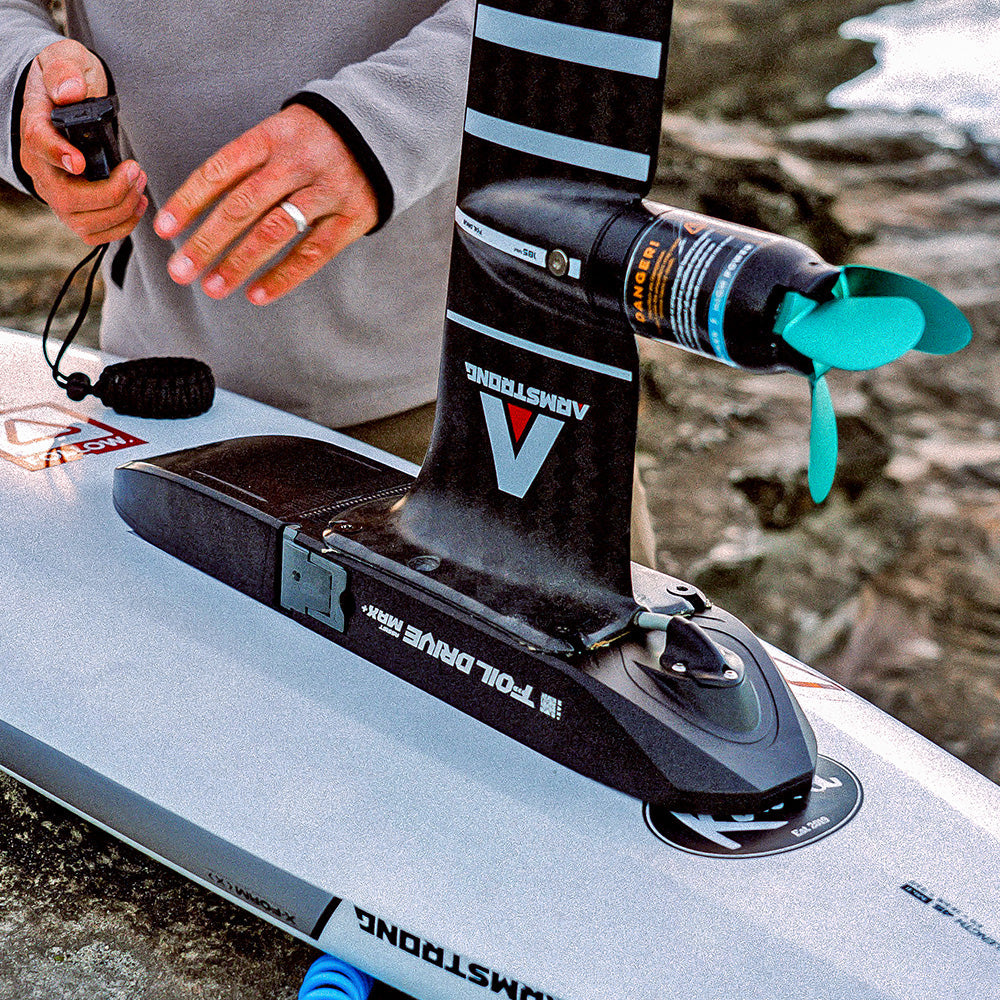

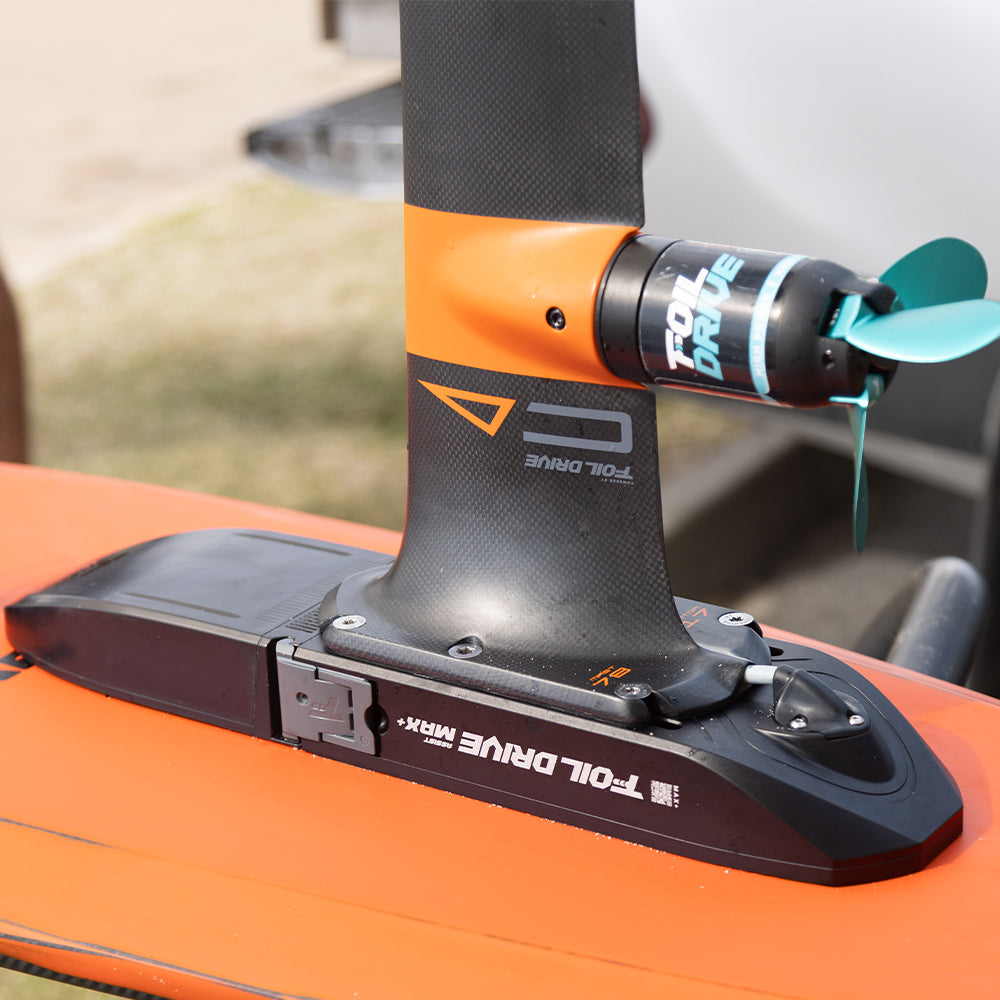

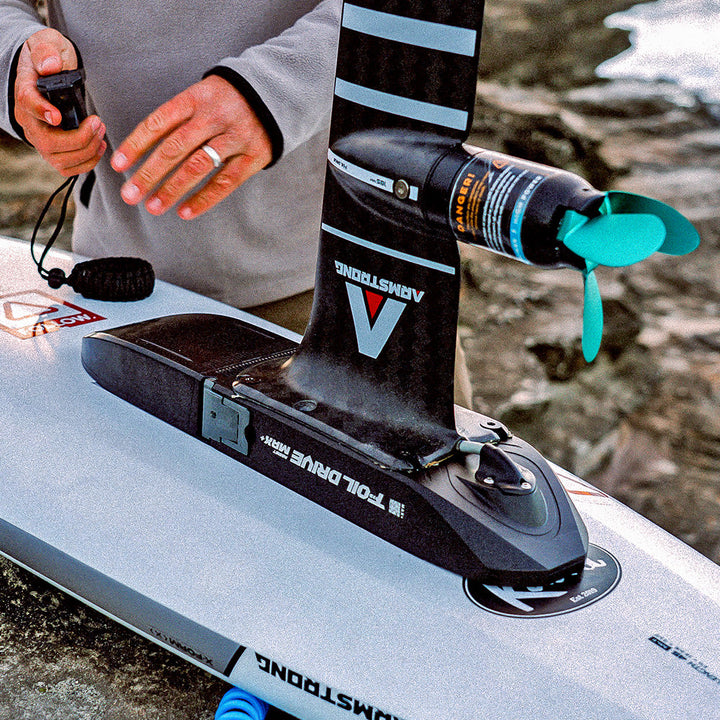

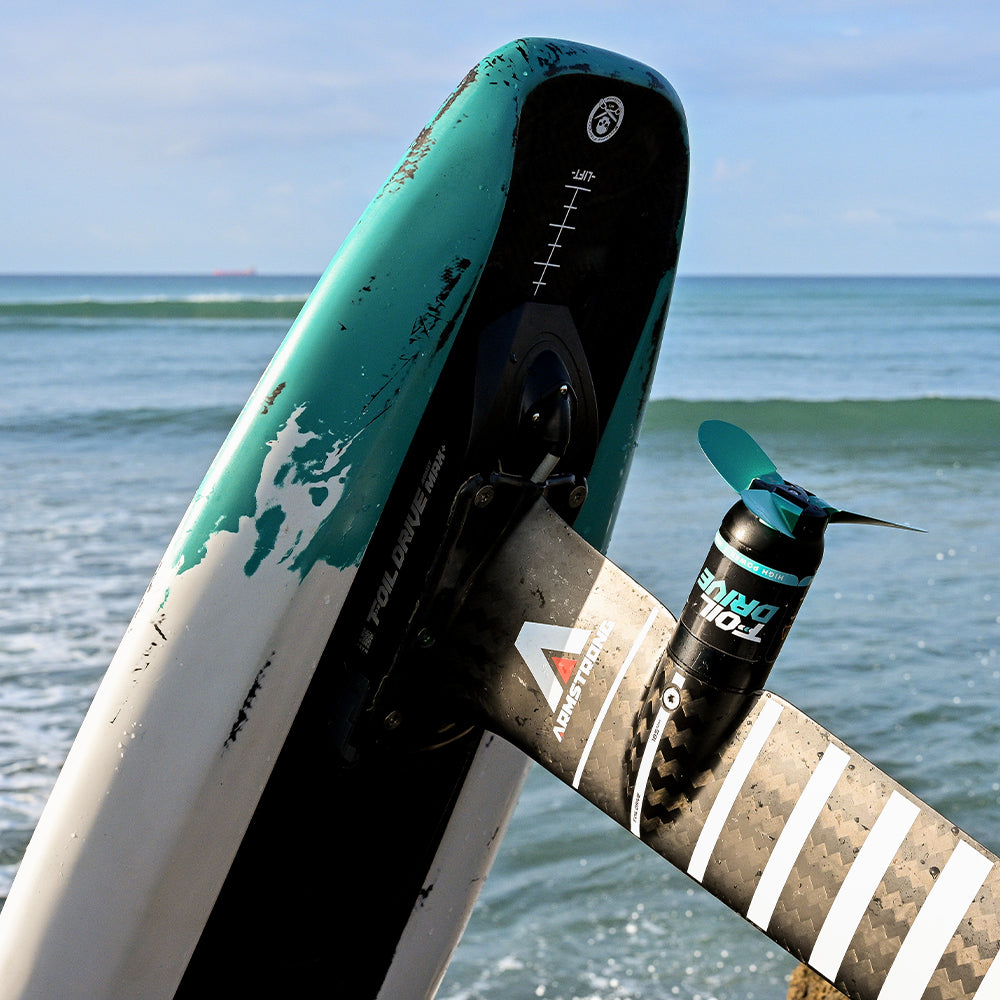

Motor: Retro-fit High Power Motor Kit (Universal Mini Pod, High Power V2 motor, three-blade prop), Integrated Mast High Power Motor (for integrated masts), Retro-fit Standard Motor Kit (Universal Motor Pod, Standard V2 motor, two-blade prop), or No Motor. Motor pods and mast adaptors are no longer included with the base kit; they come with the motor kits.

Important: Existing 40V Assist MAX batteries and chargers are not compatible with the MAX+. The MAX+ runs on the 43V platform and only accepts the FM+ battery range. The 43V Standard Charger 12amp is included with every MAX+. The lighter FM+ 430 battery is coming early 2027. FM+ batteries are also compatible with the Foil Drive Fusion (with the FM+ Battery Adaptor).

Specs

*Install weight includes unit, battery, Integrated HP Motor, three-blade hub and props, nose cone (if applicable). A retro-fit install with the Mini Pod mounted at 20cm adds about 360 g.

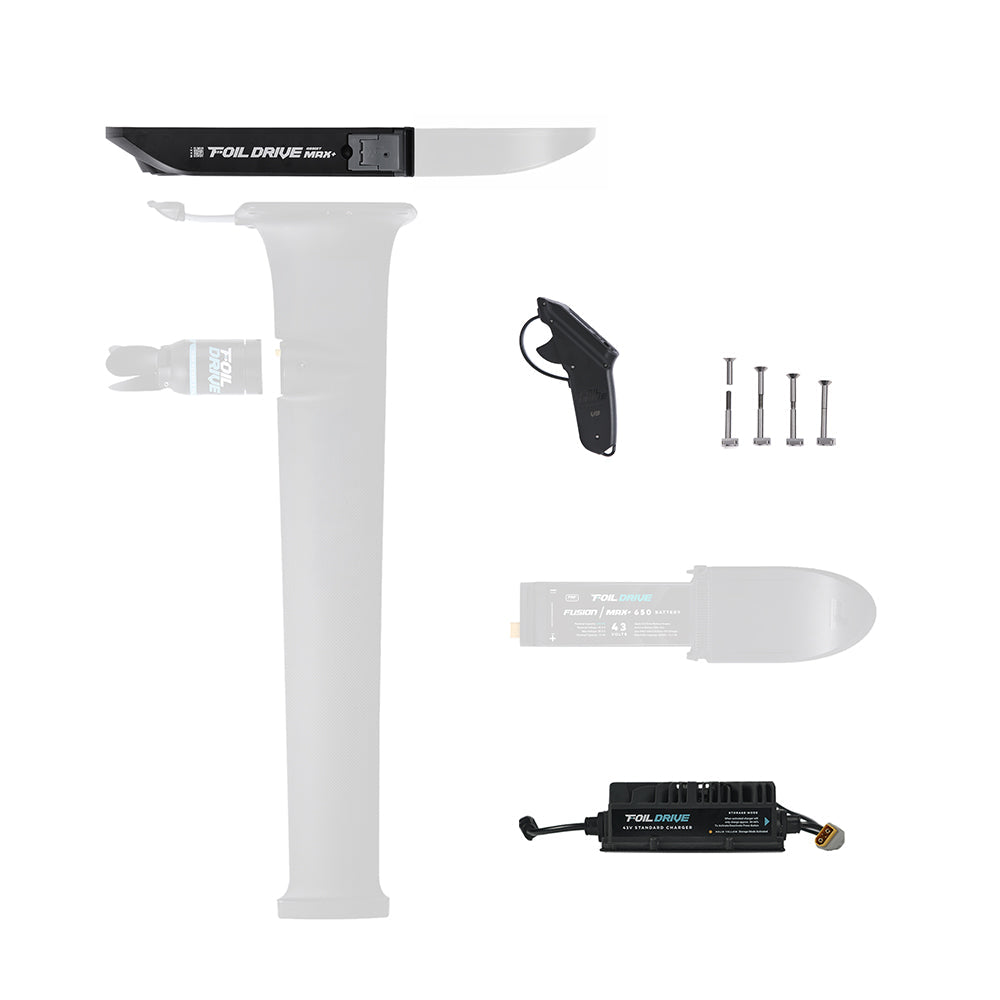

What’s in the box

• Your chosen battery and motor option

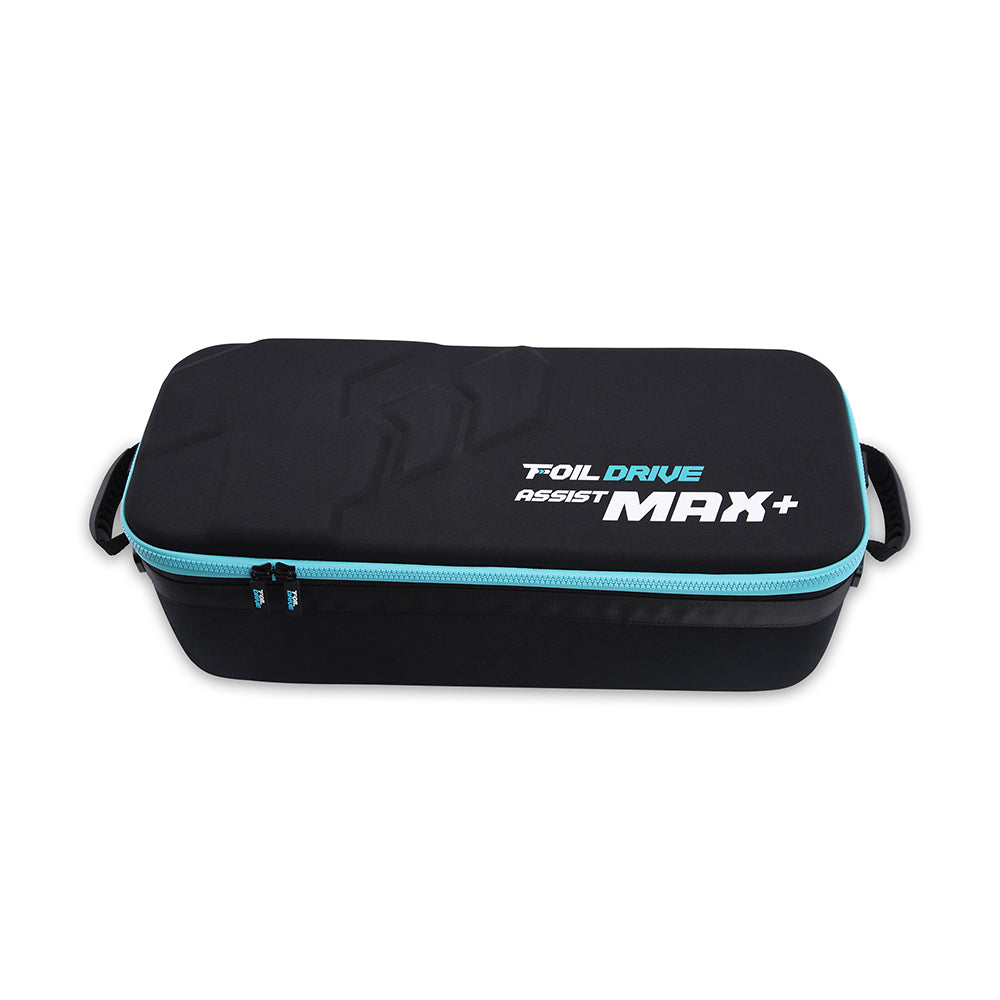

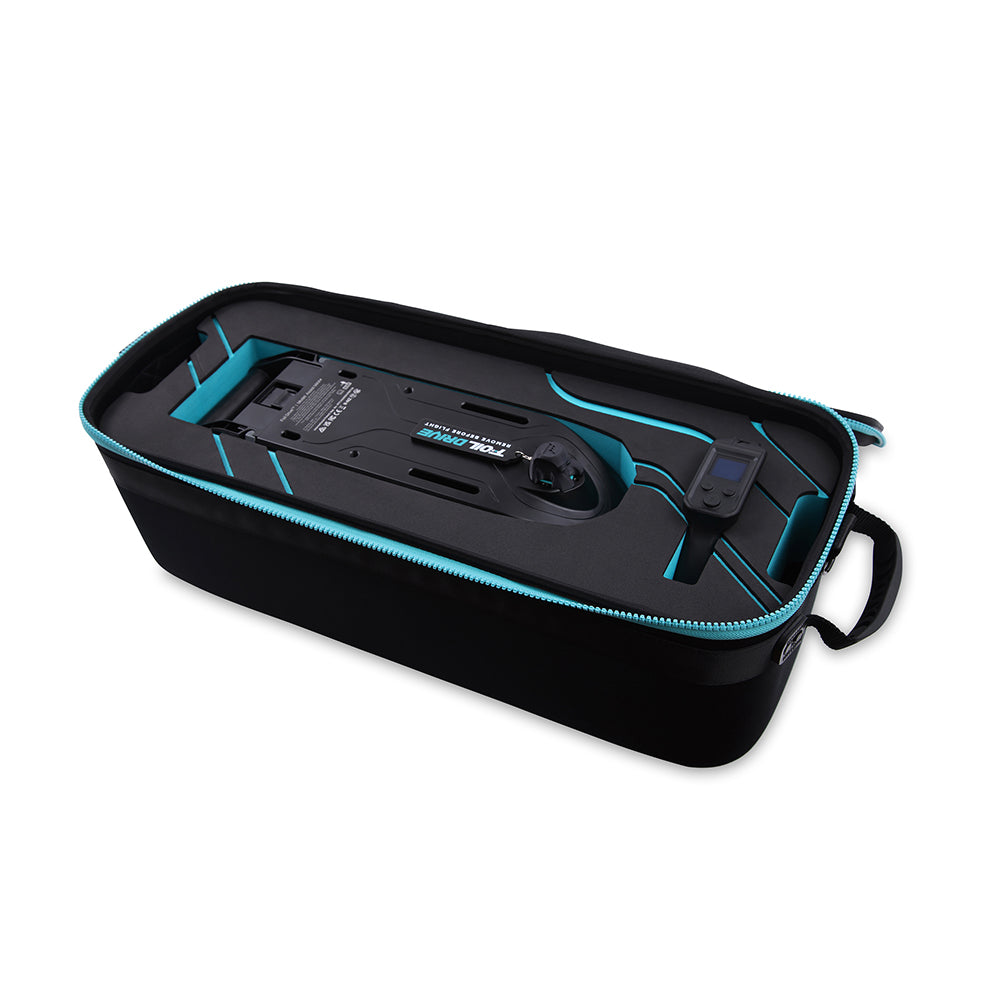

• Foil Drive Assist MAX+ unit (in case)
• V3 Controller with Bump Guard installed
• 43V Standard Charger 12amp
• 4x Titanium T40 M7 Split Bolts (Silver)
• Controller accessories case: USB-C charge pad and cable, bump guard variation, wrist leash, 1.5mm Allen key for bump guard removal
• Tools and hardware: T40 driver, T30 driver, 2.5mm black titanium driver, pick tool, 2x 15g battery grease, 2x nose cone rocker pads, 3x M4 10mm titanium motor plug bolts, anode replacement kit, replacement electronics box O-ring (blue), replacement motor cable O-rings (blue and red), microfibre towel
• 2x mast foam track guides, tool caddy (inside MAX+), sticker pack, user manuals

Boards with carbon tracks may experience connectivity issues. See the Foil Drive External Antenna.

Need help confirming compatibility? Contact The Foil Shop before ordering and we’ll help match the right Foil Drive part to your system, mast, battery, and riding goals.
